This article will show you how to convert product images from product image links in CSV files to make order fulfillment more time-efficient and accurate. When processing numerous orders at the same time, instead of having to open each order detail page in your ShopBase admin to view images of the products or product variants, by inserting product images in the CSV file, you can check accurate product information more quickly and conveniently.

In this article

A. Export your orders with Line item image link in CSV format
B. Convert image URLs link to actual images

A. Export your orders with Line item image link in CSV format

From your ShopBase admin, go to Orders > All orders and select orders that you want to fulfill.


Select Export order.


In the new popup, click Selected ... orders in Exports section, choose Customize export fields in Export template. Then, select the fields you want to export. It is required to add the following 3 fields: Name, Lineitem Name, Lineitem Image. You can select these fields by clicking on the + button corresponding to the information fields. After being selected, these fields will be displayed in the Fields To Export column as shown below.


Click Export to file when you finish.

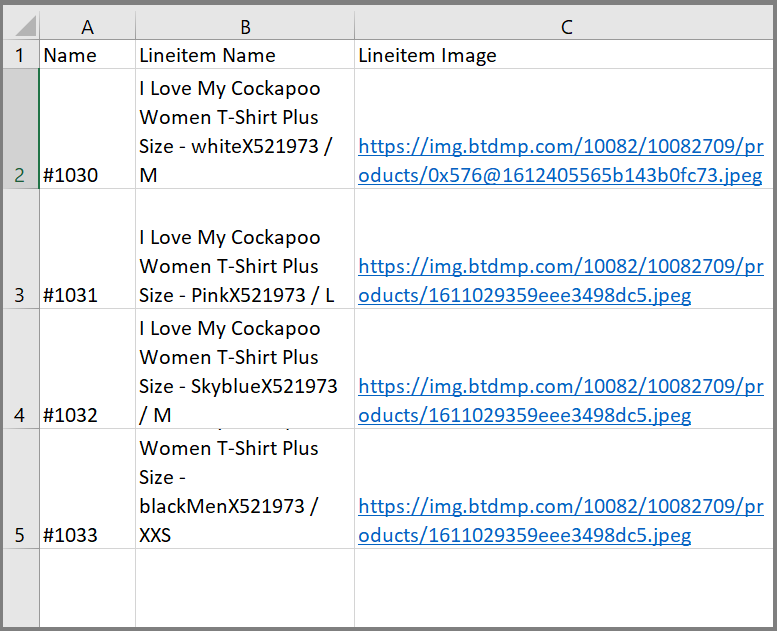

Please double-check to ensure the information fields in each column are clearly separated to avoid errors when converting from product image links to product images.

B. Convert image URLs link to actual images

Open the downloaded CSV file in section A with Microsoft Excel, right-click on any white space in the tool bar. A drop-down menu appears then select Customize the Ribbon.


Select Developer then choose OK.


The Devloper tab will display on Microsoft Excel as below.


In Developer tab, choose Visual Basic to open the Microsoft Visual Basic for Applications window.


When Microsoft Visual Basic for Applications window opens, choose Insert > Module



Paste the following code in the Module Window.

Sub URLPictureInsert()
Rows("2:7").RowHeight = 60
Dim Pshp As Shape
Dim xRg As Range
Dim xCol As Long
On Error Resume Next
Application.ScreenUpdating = False
Set Rng = ActiveSheet.Range("C2:C7")
For Each cell In Rng
filenam = cell
ActiveSheet.Pictures.Insert(filenam).Select
Set Pshp = Selection.ShapeRange.Item(1)
If Pshp Is Nothing Then GoTo lab
xCol = cell.Column + 1
Set xRg = Cells(cell.Row, xCol)
With Pshp
.LockAspectRatio = msoFalse
If .Width > xRg.Width Then .Width = xRg.Width * 2 / 3
If .Height > xRg.Height Then .Height = xRg.Height * 2 / 3
.Top = xRg.Top + (xRg.Height - .Height) / 2
.Left = xRg.Left + (xRg.Width - .Width) / 2
End With
lab:
Set Pshp = Nothing
Range("A2").Select
Next
Application.ScreenUpdating = True
End Sub




In the code above, you can customize the values the Rows ("2: 7") to define the scope of all product information lines in the CSV file (in this example, lines 2 through 7), RowHeight = 60 to resize the row height in the CSV file (in this example, 60 pixels), and ActiveSheet.Range ("C2: C7") to define the range that contains product image links (in this example, from cell C2 to C7).
With this code, you can not specify the size of the extracted images.
The code above can only extract the images into the cells in the right column of the Lineitem Image column. You cannot specify which cells should be used to generate the images.
Then press F5 key or click Run > Run Sub/UserForm to run this code.




Please allow some time for the code to complete. This will depend on the number of rows in the file. A 650-line file takes about 10 minutes to process.
Save your file in.xlsx format to ensure that it works properly when sent to others.

Then, all the images converted from the product image links will be immediately displayed in the right column of the Lineitem Image column corresponding to each product as shown below:
